S Series Oil Mist Collectors | Ultra Compact

The industry-proven solution for eliminating oil mist from manufacturing environments, trusted by world leading manufacturers since 1969.

Compact | Quiet | Efficient

Multiple Mounting Options

Filtermist’s S Series oil mist collectors are compact, lightweight and designed to be directly mounted onto machine tools. They can also be fitted using floor stands and machine mounting brackets.

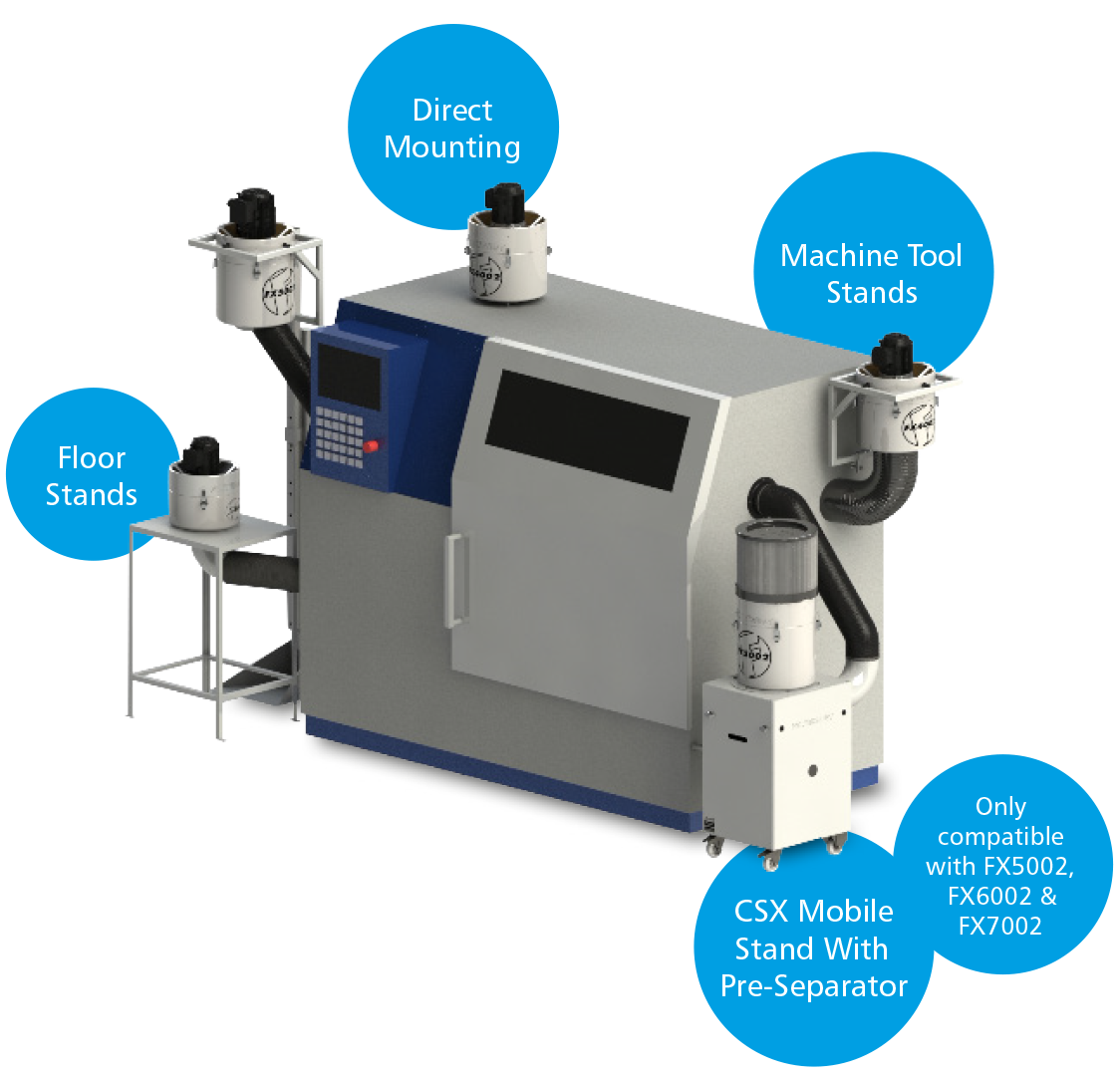

Mounting Options

Energy Efficient Oil Mist Extraction

Fitted with either 0.18kW or 0.55kW motors, S Series oil mist collector units are low energy users.

Stainless Steel

Filtermist FX and S series oil mist collectors are available in standard mild steel construction and also stainless steel versions for use in hazardous or corrosive environments.

Tech Data

Model	Airflow m³/hr	Motor ¹		A mm	B mm	C mm	D mm	E mm	F mm	Weight kg	Noise ² dBA
S200	180 @ 50Hz 215 @ 60Hz	0.18kW 50Hz 200v, 220v, 380v, 400v	0.18kW 60Hz 200v, 220v, 230v, 440v, 460v, 480v	260	302	30	73	423.50	324	8	62
S400	425 @ 50Hz 500 @ 60Hz	0.55kW 50Hz 200v, 220v, 380v, 400v	0.55kW 60Hz 200v, 220v, 230v, 440v, 460v, 480v	325	374	35	148	494.50	357	14	65
S800	800 @ 50Hz 950 @ 60HZ	0.55kW 50Hz 200v, 220v, 380v, 400v	0.18kW 60Hz 200v, 220v, 230v, 440v, 460v, 480v	325	427	35	148	543.50	357	15	67

¹ Motors to be used on specified voltages only.
² Results are in test conditions ± 3% tolerance. Local variations and in use conditions may affect readings.

Accessories

All oil mist collectors have a number of accessories available including high-efficiency afterfilters to purify the exhaust air.
